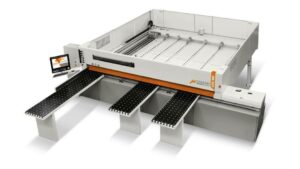

Casadei Busellato AXO 300 Automatic Panel Saw
The AXO 300 automatic horizontal beam saw is powerful and reliable and the dimensional precision of the finished product is perfect.
Benefits of AXO 300
Flexibility: The AXO 300 offers maximum flexibility: small “Just In Time” lots can be manufactured quickly and easily, even when cutting panels individually, and heavy production can be be handled by cutting several stacked panels at the same time. The wide range of options available also includes several accessories for cutting non-ferrous material.
Growing companies which require production flexibility will appreciate the performance, power and flexibility of the AXO 300.

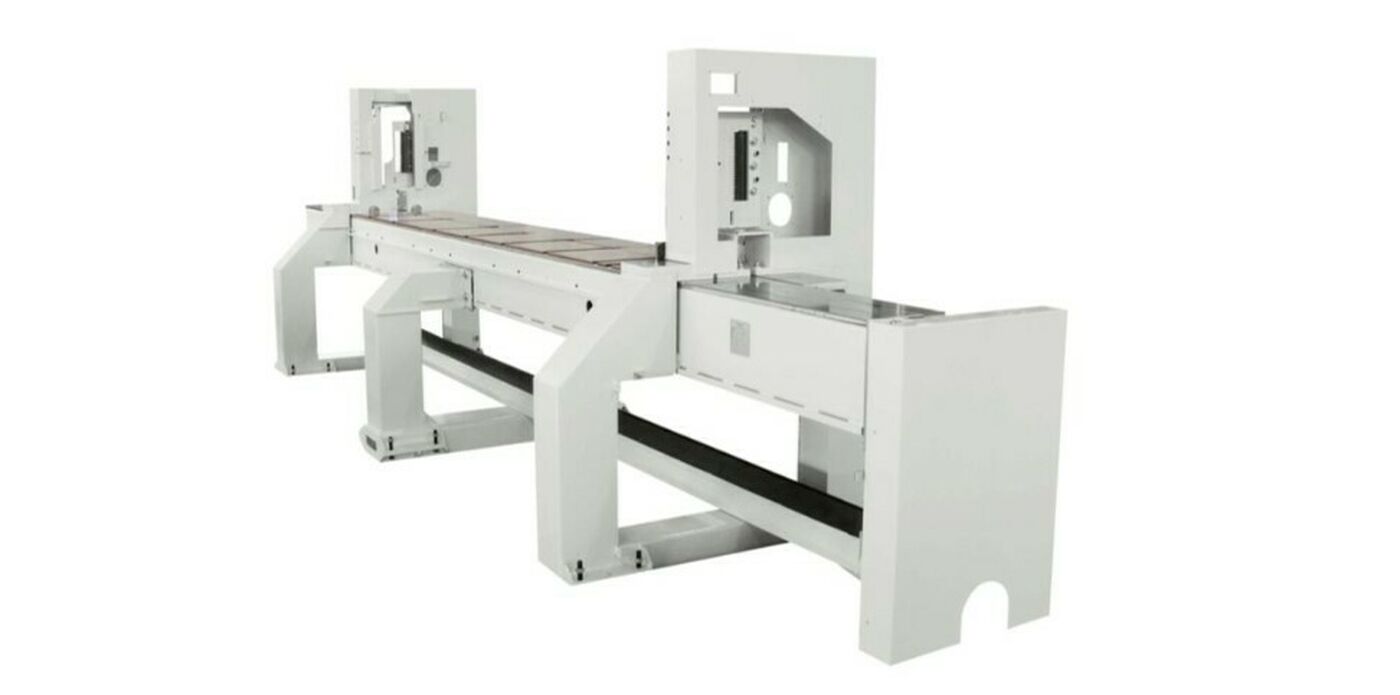

Sturdiness: Deflection-free and high rigidity steel machine frame with tubular structure.
Product Documentation
Casadei Busellato AXO 300 Automatic Panel Saw Specification
| Ripping capacity | 3200/3800/4500 mm |
|---|---|
| Pusher stroke | 2100/3200/3200 mm |
| Blade projection | 90 mm |
| Saw carriage feed speed | 6 ÷ 60 m/min (std) 0 ÷ 135 m/min (opt) 0 ÷ 150 m/min (opt) |
| Max. pusher return speed | 60 m/min (std) 70 m/min (opt) 120 m/min (opt) |
| Main motor power at 50 Hz (S6) | 9 kW (12 Hp) |
| Scoring motor power at 50 Hz (S6) | 1,8 kW (2,5 Hp) |
