Casadei Busellato AXO 400/ AXO 400 T Automatic Panel Saw
AXO 400
The AXO 400 is a machine designed with the same criteria of strength, reliability and dimensional precision as the other machines in the AXO series. However, improved performance thanks to blade projection, motor power up to 15 kW, and greater saw carriage feed speeds and pusher speeds make this machine the ideal solution for companies with a high production rate.

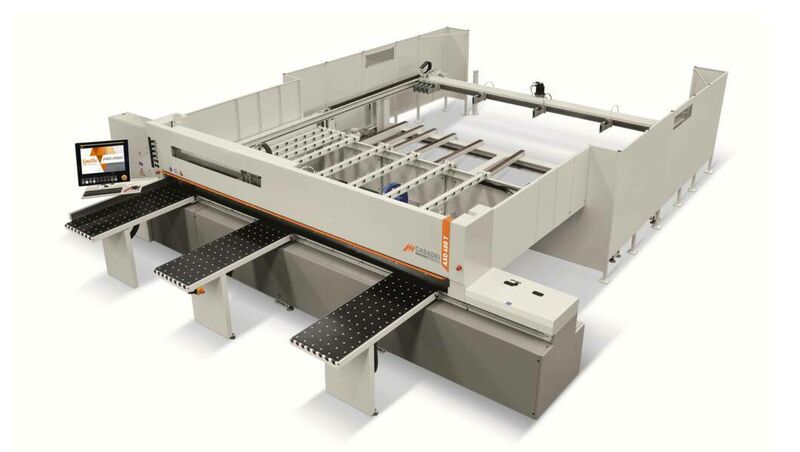

AXO 400 T
The AXO 400 T allows a significant increase in production thanks to the rear lifting table. The panel stack is loaded on to the loading table and the machine works in a continuous cycle automatically loading the panel stacks as set in the cutting program.
Product Documentation
Casadei Busellato AXO 400/ AXO 400 T Automatic Panel Saw Specification
| AXO 400 | |
|---|---|
| Ripping capacity | 3200/3800/4500 mm |
| Pusher stroke | 2100/3200/3200 mm |
| Blade projection | 110 mm |
| Saw carriage feed speed | 6 ÷ 60 m/min (std) 0 ÷ 135 m/min (opt) 0 ÷ 150 m/min (opt) |
| Max. pusher return speed | 60 m/min (std) 70 m/min (opt) 120 m/min (opt) |
| Main motor power at 50 Hz (S6) | 9 kW (12 Hp) |
| Scoring motor power at 50 Hz (S6) | 1,8 kW (2,5 Hp) |
