Casadei Busellato Easy Jet 7.10 - C

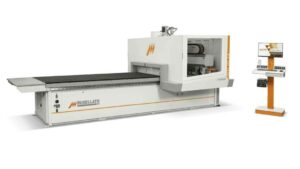

The EASY JET working centers have been designed for easy and intuitive use by specialized technicians and craftsmen. It is a compact working center, accessible from three sides, which maintains the high performance of the larger models whilst being economical. The EASY JET is ideal for manufacturing furniture parts and interior doors.

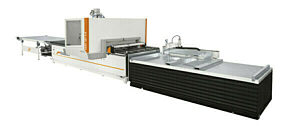

Now available with automatic loading and unloading system "Cella Nesting"
X=3086 mm Y=2155 mm Z= 100 mm (7 x 10 ft)
CNC Working center complete with
Electrospindle 9,5 kW – 13 HP (S6 -40%)
12M boring head

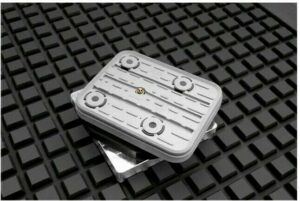

Phenolic multifunction table (30x30)
Centralized manual lubrication system
Pre-arrangement for angle driven heads

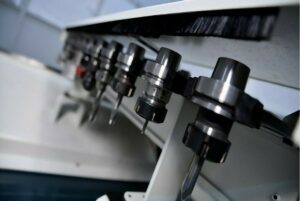

Tool changer LINEAR 13 HSK F63
Nr. 1 tool-holder r/h HSK-63 for elastic collets ER-32
Nr. 4 rear stops r/h for zone “D”
Machining on single area
Pre-arrangement for 2 vacuum pumps
Pump 500 m3/h (2x250)
Remote console with PC Office
Mobile control panel with machine controls
Easy2Go CNC interface software
Programming software “Wave”
Rectangular nesting module for “Wave”
Hardware key (dongle) for “Wave” nesting USB
Added Options
2 Working areas (X) complete with reference stops.
- No. 3+1 additional rear reference stops
- No. 1 additional lateral reference stop
- No. 5 reference stop extensions H=15 Diameter 22
Front Reference Stops
- No. 3+3 Additional front reference Stops
- No. 1+1 Additional lateral reference stops
- No. 4+4 reference stop extensions H=15 Diameter 22
Tool length pre-setting device
Automatic central lubrication system

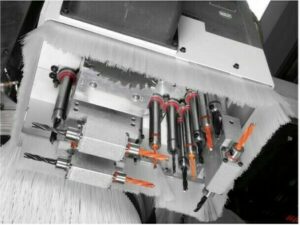

18M head - (12V+4X+2Y+saw blade)
Device with 4 blowers for electrospindle
Movable dust extraction hood
NESTING free-form +wave label modules
