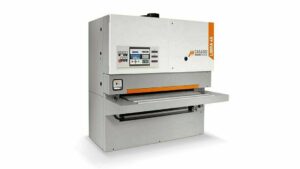

Casadei Busellato Libra 45 Automatic Wide Belt Sander
Equipped with technical solutions normally found on larger machines, the LIBRA 45 wide belt sander is a versatile and flexible machine capable of coping with high production rates.
Libra 45 Benefits
Reliability: Precision, machining consistency, low noise level and great reliability are the main features of this model.
Flexibility: Available with one or two operating units and with two different working widths (1100 and 1350 mm), it allows calibration, pre-sanding and sanding of a variety of different materials with a high quality finish. The wide range of different compositions and the options available make the LIBRA 45 the ideal machine for processing solid wood, veneered, honeycomb and lacquered panels.
Sturdiness: A very rigid machine frame with tubular structure made using a robotic welding system.
Libra 45 Features
Platen positioning selector switch on front control panel
Infeed and outfeed support rollers for short and long work pieces
Version "Y" for RTC
Oscillating belt cleaning blower on the 2nd unit
Variable feed motor 1,5 kW (2 HP)
Main motor 18,5 kW (25 HP)
Product Documentation
Casadei Busellato Libra 45 Automatic Wide Belt Sander Specification
| Working width | 1350 mm |
|---|---|
| Working height | 4 - 170 mm |
| Sanding belt width | 1370 mm |
| Sanding belt length | 2150 mm |
| Main motor power | 11 (15) kW (HP) |
| 2 belt feed speeds | 4,5/9 m/min |
| Feed motor power | 0,45/0,8 (0,6/1,1) kW (HP) |
