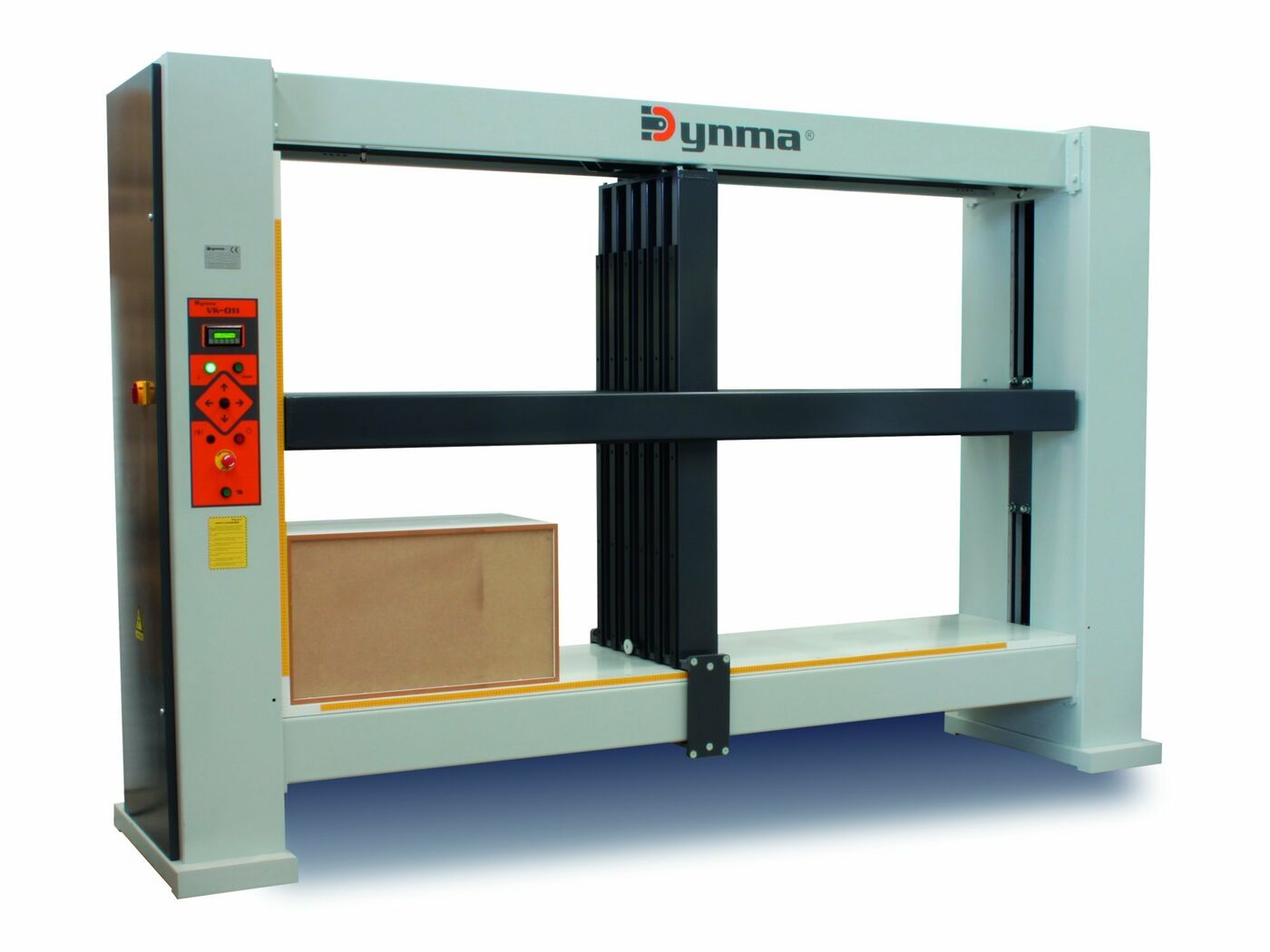

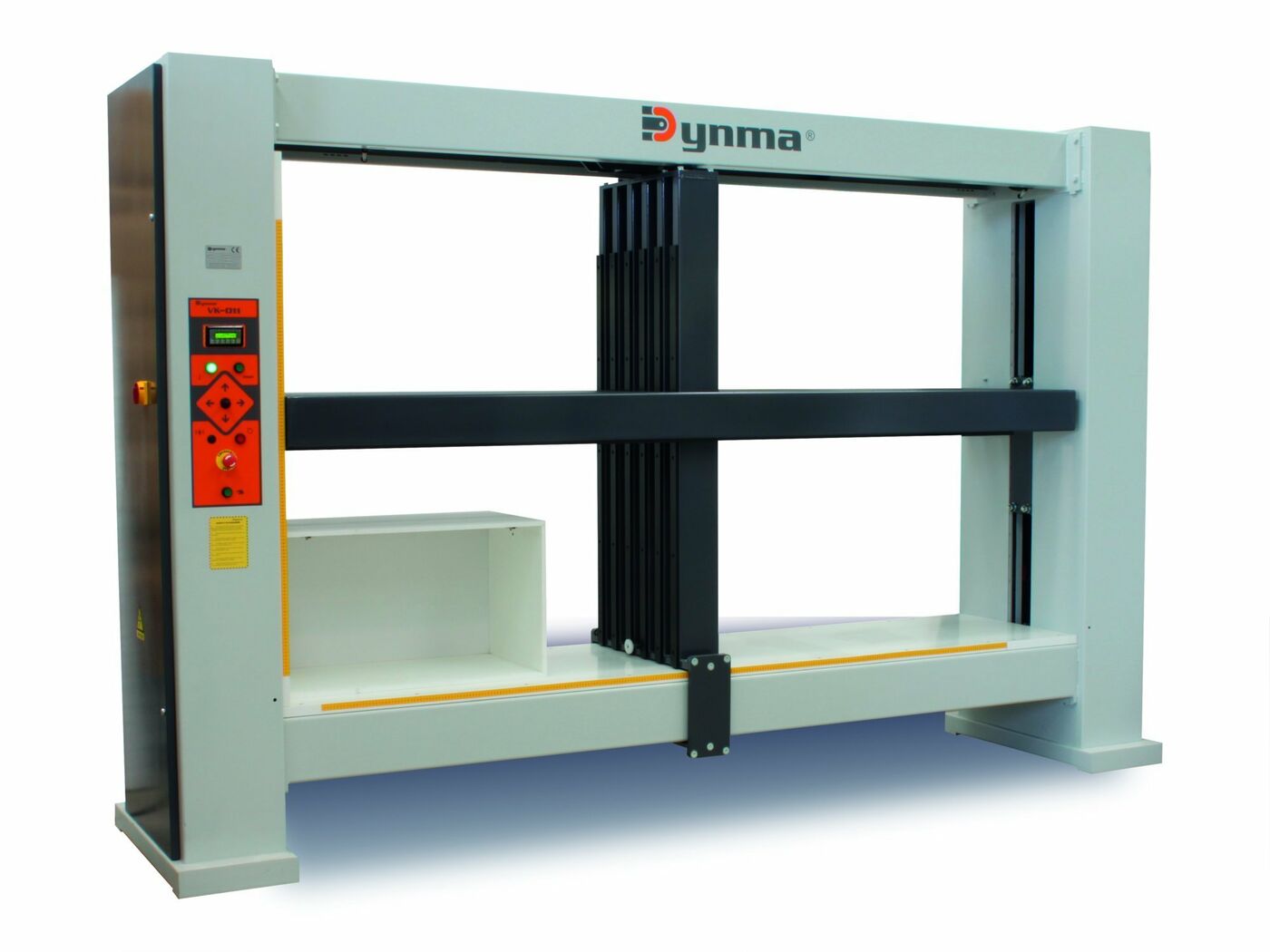

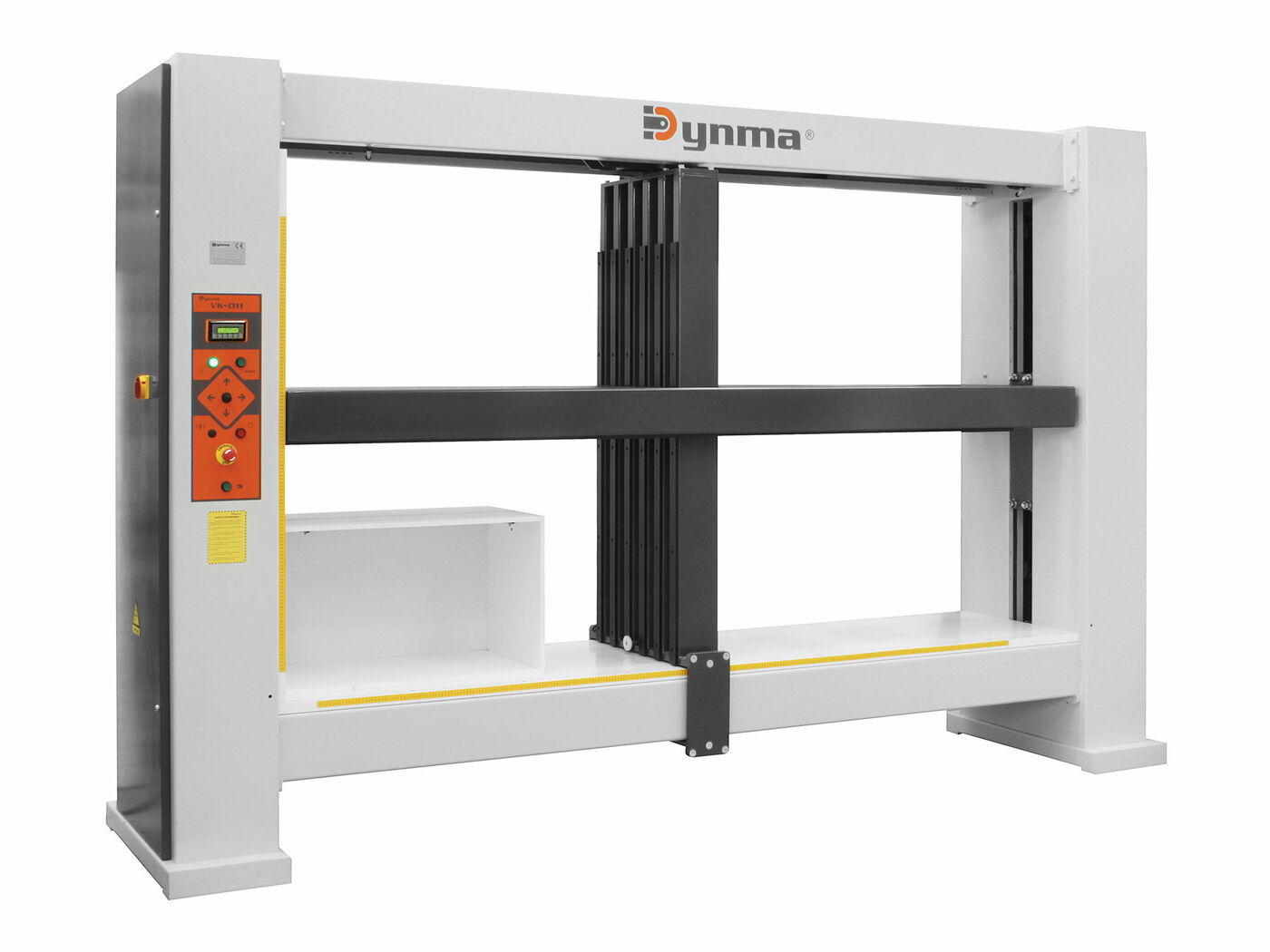

Dynma VK011
Dynma VK011 Specification
| Max. / Min cabinet length (X) | 2.600 / 300 mm 0 |
|---|---|
| Max. / Min cabinet height (Y) | 1.350 / 300 mm 0 |
| Max. / Min cabinet width (Z | 700 / 220 mm 0 |
| Max. lateral strength (Fx) | 1.800 Kg. 0 |
| Max. vertical strength (Fy) | 2.300 Kg 0 |
| Vertical platform, 7 structural pipes | 150x50 mm 0 |
| Lateral platform, 6 structural pipes | 150x50 mm 0 |
| Standard working height (H1) | 420 mm 0 |
| Voltage | 400 v 0 |
| Electrical power | 3 Kw 0 |
| Min. working pressure | 3 bar 0 |
| Transport dimensions (LxHxW) | 3660x940x2300 mm. 0 |
| Weight | 2.100 Kg. 0 |
