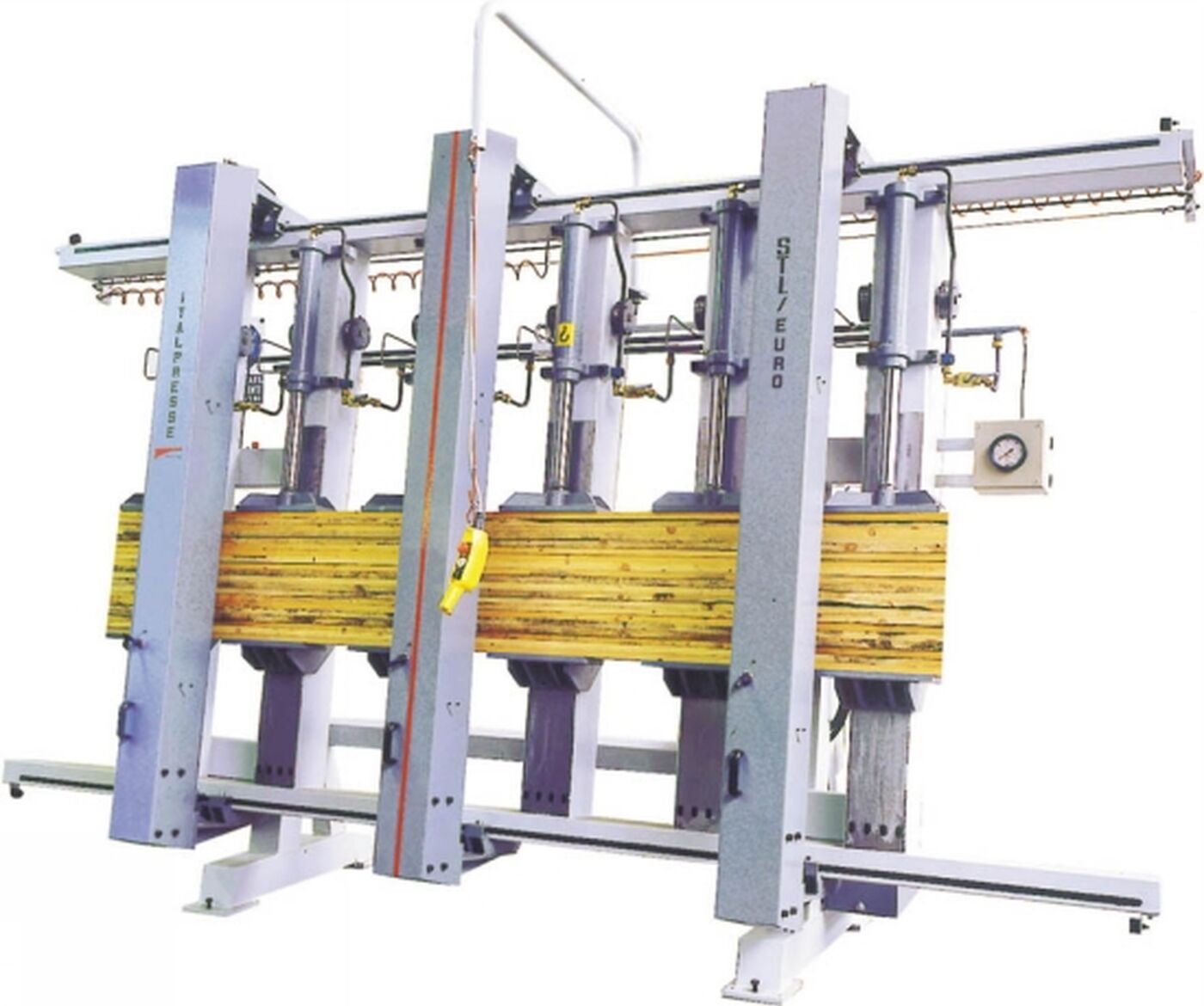

Italpresse Press for Laminated beams mod. STL/Euro

Back arow icon Previous Page


For further details on the Italpresse Press for Laminated Beams mod. STL/Euro, which is available in different specifications please contact R&J Machinery on 01455 840224.

Italpresse Press for Laminated Beams Mod. STL/Euro Features

Tick bullet point Lower plates working height 660mm / 1060mm / 1460mm
Tick bullet point Adjustable vertical height and horizontal pressure
Tick bullet point Thrust cylinders manual exclusion
Tick bullet point Pendant push button strip

Italpresse Press for Laminated Beams Mod. STL/Euro Options

Tick bullet point Additional opposition bar
Tick bullet point Electric contact pressure gauge for adjustment of vertical cylinders pressure
Tick bullet point Double balancer for lower plate

Italpresse Press for Laminated beams mod. STL/Euro Specification

Max useful length 3500mm
Max useful width 150mm
Max height 1250mm
Min width 50mm
Min height 50mm
Thrust cylinders 6
Thrust diameter 70
Cyinders stroke 400mm
Opposition bar 3
