Used Biesse SELCO Sektor 470 TP

Back arow icon Previous Page


About the Used Biesse SELCO Sektor 470 TP

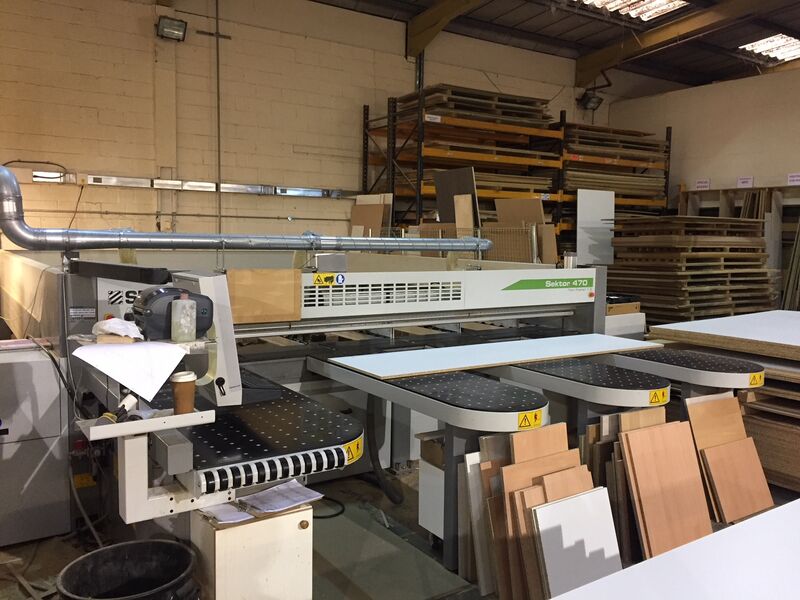

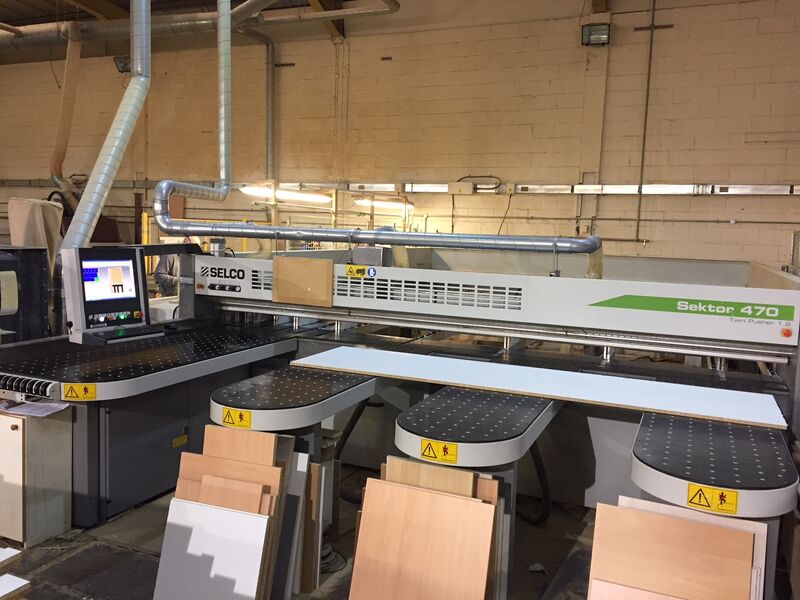

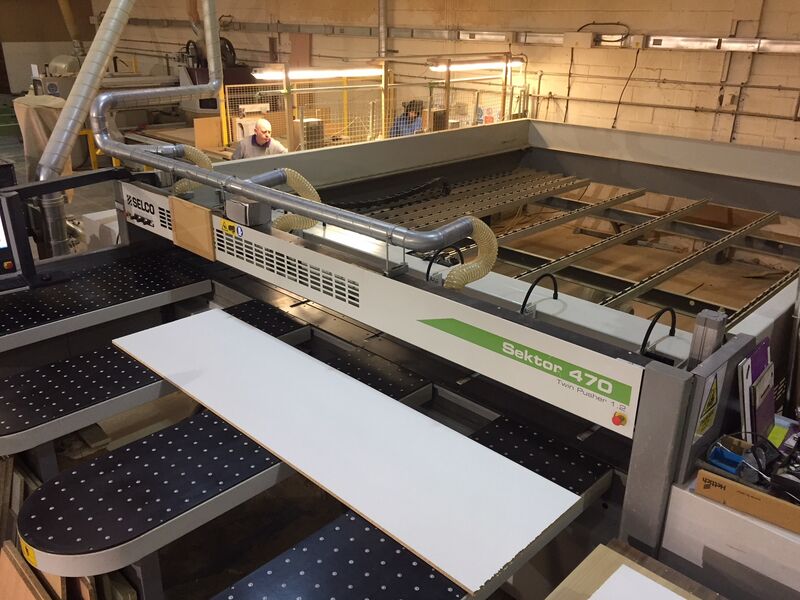

Excellent chance to purchase a used Biesse Sektor 470 TP beam saw. Machine has been fully serviced by Biesse.

The machine has a working width of 4400mm and has a twin pusher so head cuts and rip cuts can be performed at the same time.

Machine is still on site but can be viewed and seen working.

Used Biesse SELCO Sektor 470 TP Features

Tick bullet point Cut line 4400mm x 4300mm
Tick bullet point Automatic blade projection
Tick bullet point Integrated side aligner
Tick bullet point Quick change blade system
Tick bullet point PC Based control unit
Tick bullet point Digiset - electronic adjustment of scoring blade and memorisation of blade sets

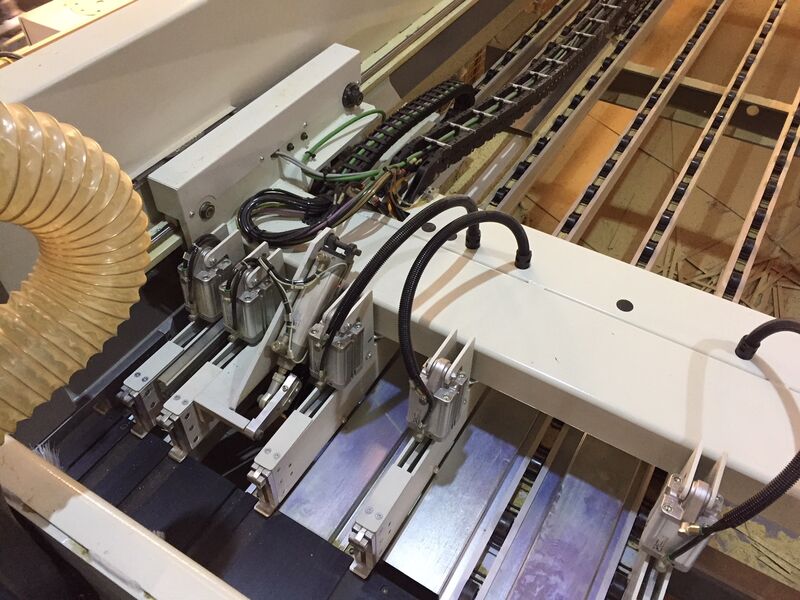

Tick bullet point Twin Pusher - Increased productivity, two cutting stations on a single beam saw. Rip and cross cut simultaneously without any manual intervention
Tick bullet point Cross cut fence air table extended to 800mm width
Tick bullet point Additional 3 air tables rounded for operator ease
Tick bullet point 8 independent grippers
Tick bullet point Label printer station

Used Biesse SELCO Sektor 470 TP Specification

Max blade projection 90mm
Main saw motor 15hp
Scoring saw motor 3hp
Saw carriage traverse movement Brushless
Saw carriage speed 1-120 m/min
Pusher traverse movement Brushless
Pusher speed 60 m/min
Air extraction flow 3600 m3/h
Average air consumtion 130 nl/min
