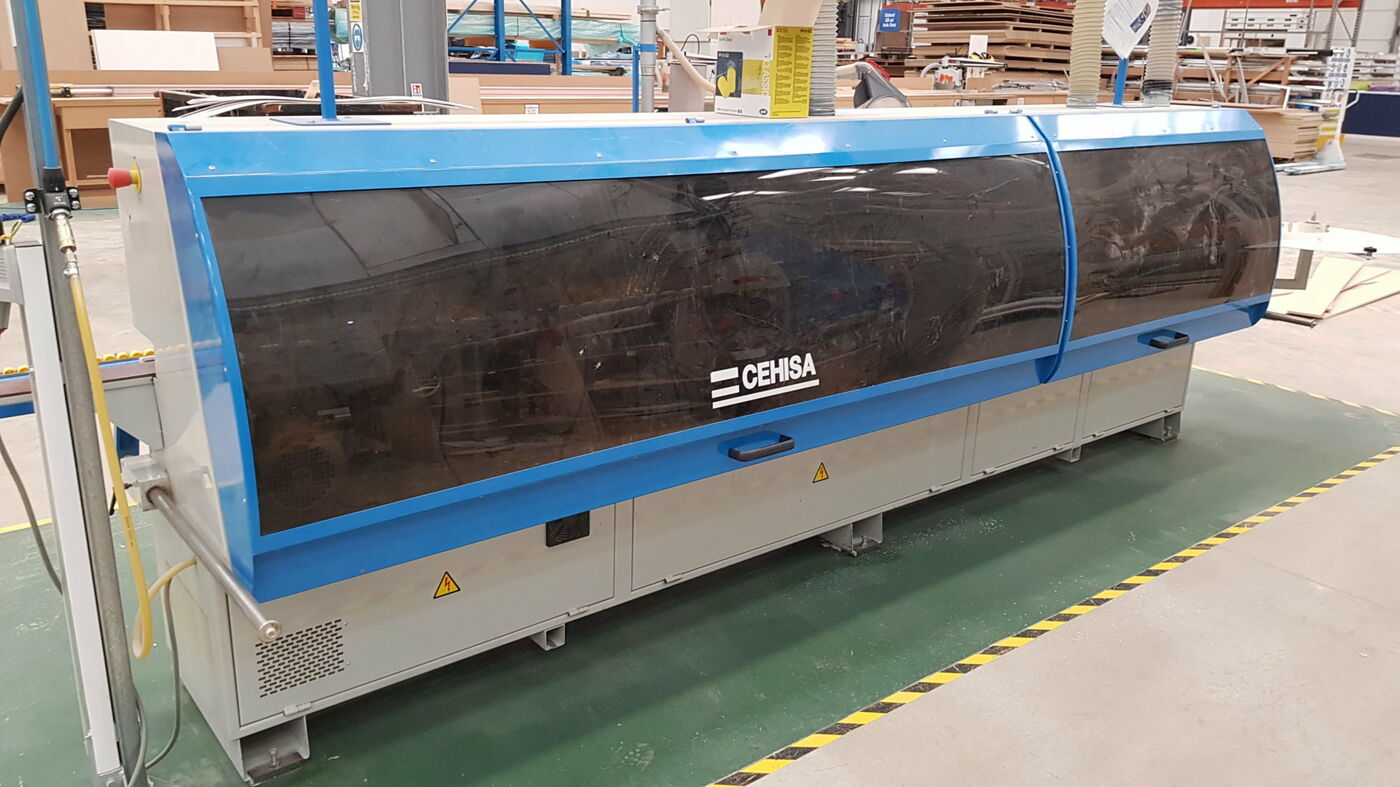

Used Cehisa Pro 12

Back arow icon Previous Page


Used Cehisa Edgebander with Pre-milling

Corner rounding

Cehisa Pro 12 description

This machine is currently in stock and available for demonstration or quick delivery. This Cehisa PRO12 has a high specifiction, it allows for EVA glue usage and quick changing between thin and thick edging. Edgebanding first came into light in the 1960’s. Following the evolution from natural solid wood into man made panels, the manufactures needed to find a way of edging this new technology and so the edgebander was born. Cehisa was one of the first companies to start manufacturing edge banders, introducing their first edgebander in 1968. Cehisa are very strong in the market and up to date have sold 35000 machines in 65 countries worldwide.The Pro series brings great quality and production flexibility at an amazing price. It has been designed to meet high expectations of busy workshops. For further information contact the sales team on 01455 840224

Cehisa Pro 12 features

Tick bullet point Pre-milling Station - 2 HF Motors, the first of 1.8kW rotating CW and a second of 1.5kW rotating CCW with pneumatic pressure control on both motors, providing optimum finish
Tick bullet point Feeding Station - A tray for the roll of edging material. Timer controlled automatic feed allowing the precise adjustment of the in-feed surplus and minimizing the waste of edging material
Tick bullet point End Trimming Station - 2 independent HF motors (0.55kW / 12000 RPM) one performing the front and the other the rear trim cut. Smooth and precise movement of the carriage on linear bearings along hardened and ground cylindrical guideways. The saws can be tilted at an angle 0-10deg. angle for a better finish of the end trim cuts.
Tick bullet point Top and Bottom Trimming Station - Separate top and bottom units for trimming of the excess of edging material along the upper and the lower edges of the panel. High gloss tracers with SIKO digital readouts for easy and precise adjustment. 2 independent units, tiltable 0-20deg, powered by HF motors 0.75kW / 12000 RPM, equipped with milling cutter heads for trimmed solid wood edges up to 8mm. Roller type tracers for work with high gloss and 3D effect panels and edges.
Tick bullet point Corner Rounding - Designed to round the 4 points of the panel edged with 2mm PVC/ABS band in order to achieve its complete finishing. Vertical tracer equipped with dual independent regulation to achieve the perfect machining of the panel. Not recommended for machining of deeper soft formed or post formed profiles. Powered by two HF motors of 0.27 kW, equipped with a vertical and a horizontal tracing devices. Minimum length of the panel when using the corner rounding: 200mm
Tick bullet point Radius Scraper Designed to give the finishing touch of the radius of the PVC/ABS edging after the T&B trimming.Roller type horizontal and vertical tracers with SIKO digital counters for precise and easy adjustment. Blow nozzles for tracer cleaning. Extraction system with PVC/ABS waste collector. Manual positioning of the station in ON and OFF position.
Tick bullet point Glue Scraper Designed to remove possible rests of glue on the top & bottom surfaces of the panel.Two blade holders with independently adjustable vertical copying devices Blow nozzles for tracer cleaning.Manual positioning of the station in ON/OFF position
Tick bullet point Work piece and support - Pressure beam with 2 row of rollers, Motorized pressure beam positioning from the control panel, Drag chain – an industrial chain sliding on two hardened and ground steel guides with non-marking rubber pads
Tick bullet point Buffing station
Tick bullet point Tooling for 2mm radius
Tick bullet point

Used Cehisa Pro 12 Specification

Pre Milling First motor 1.8KW Second motor 1.5KW .
Pressure Rollers 3 rollers .
End trimming station 2 saws .
Top and bottom trimming station Tracing with large dia wheel .
Corner rounding 1 motor .
Radius scraping Tracing with large dia wheel .
Glue scrapers Yes .
