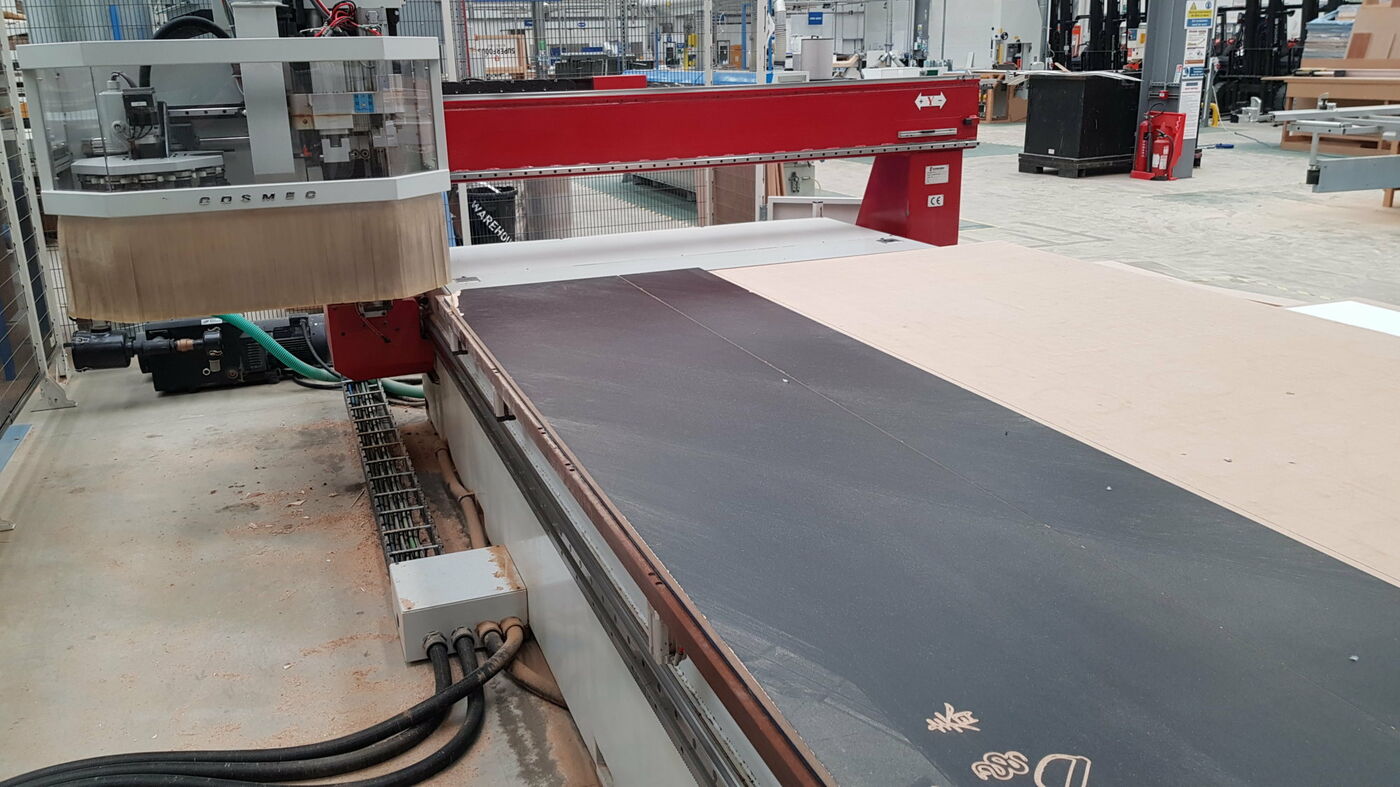

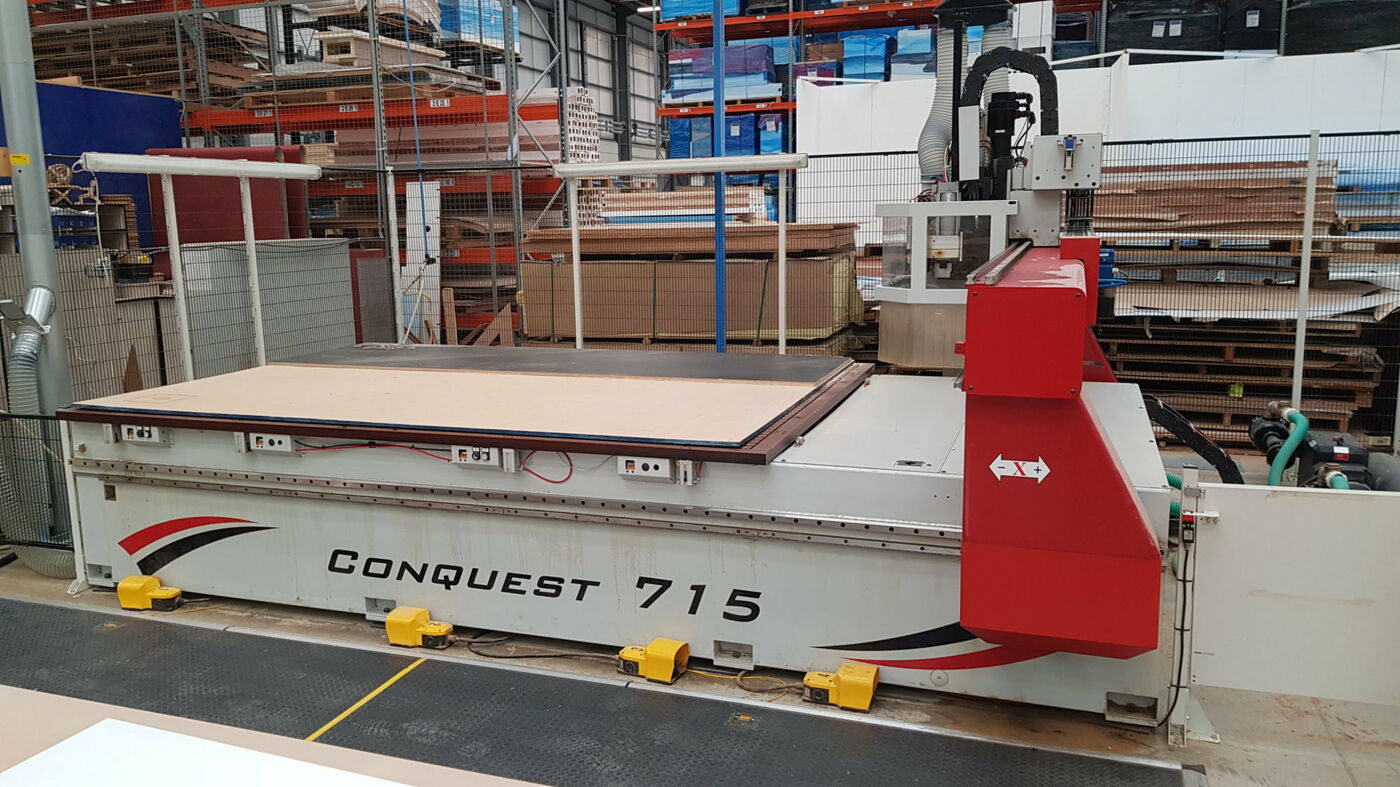

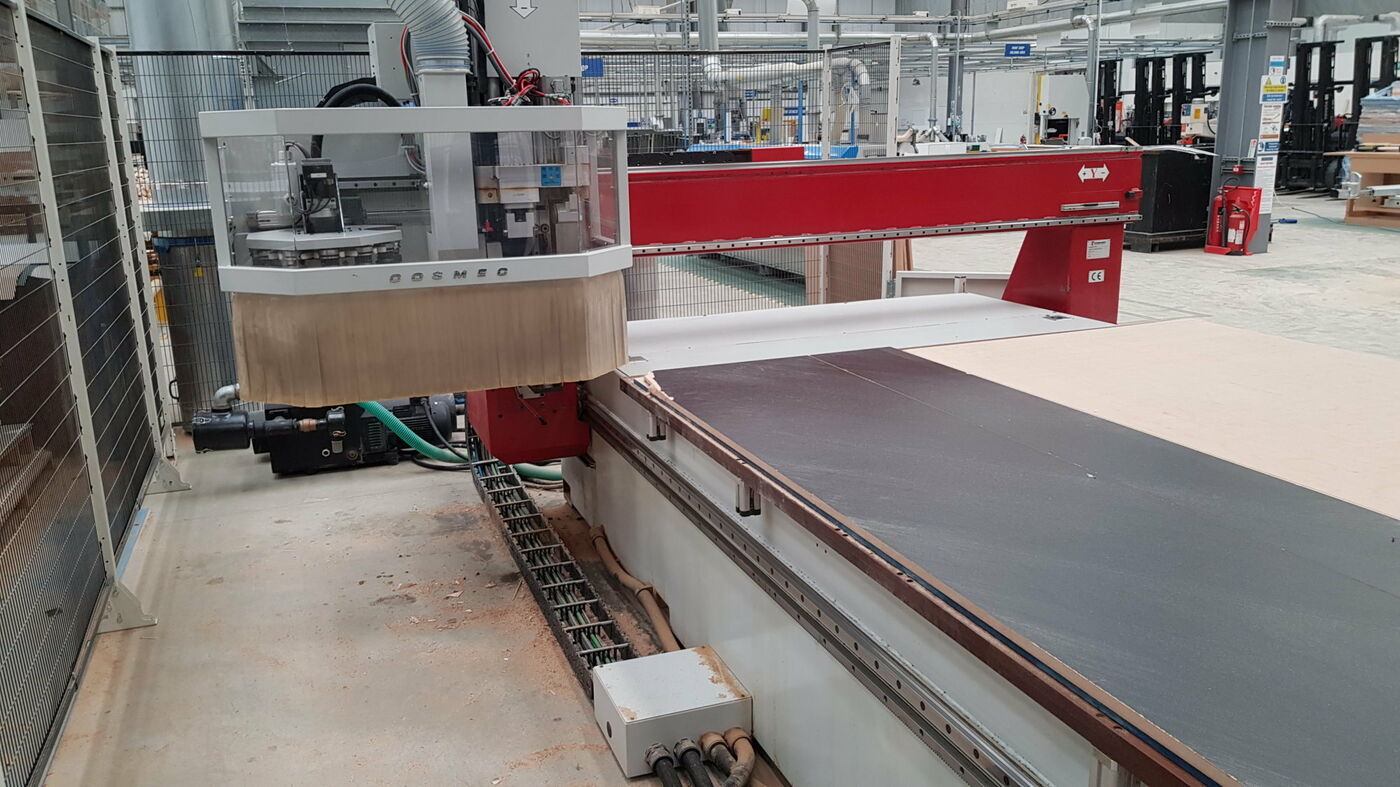

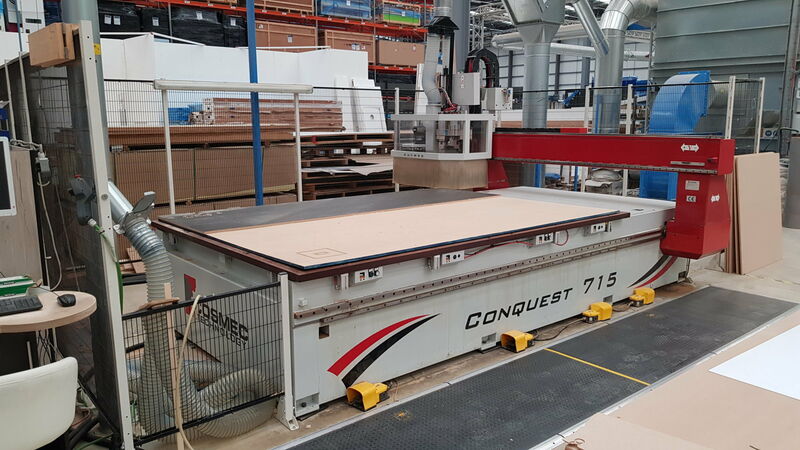

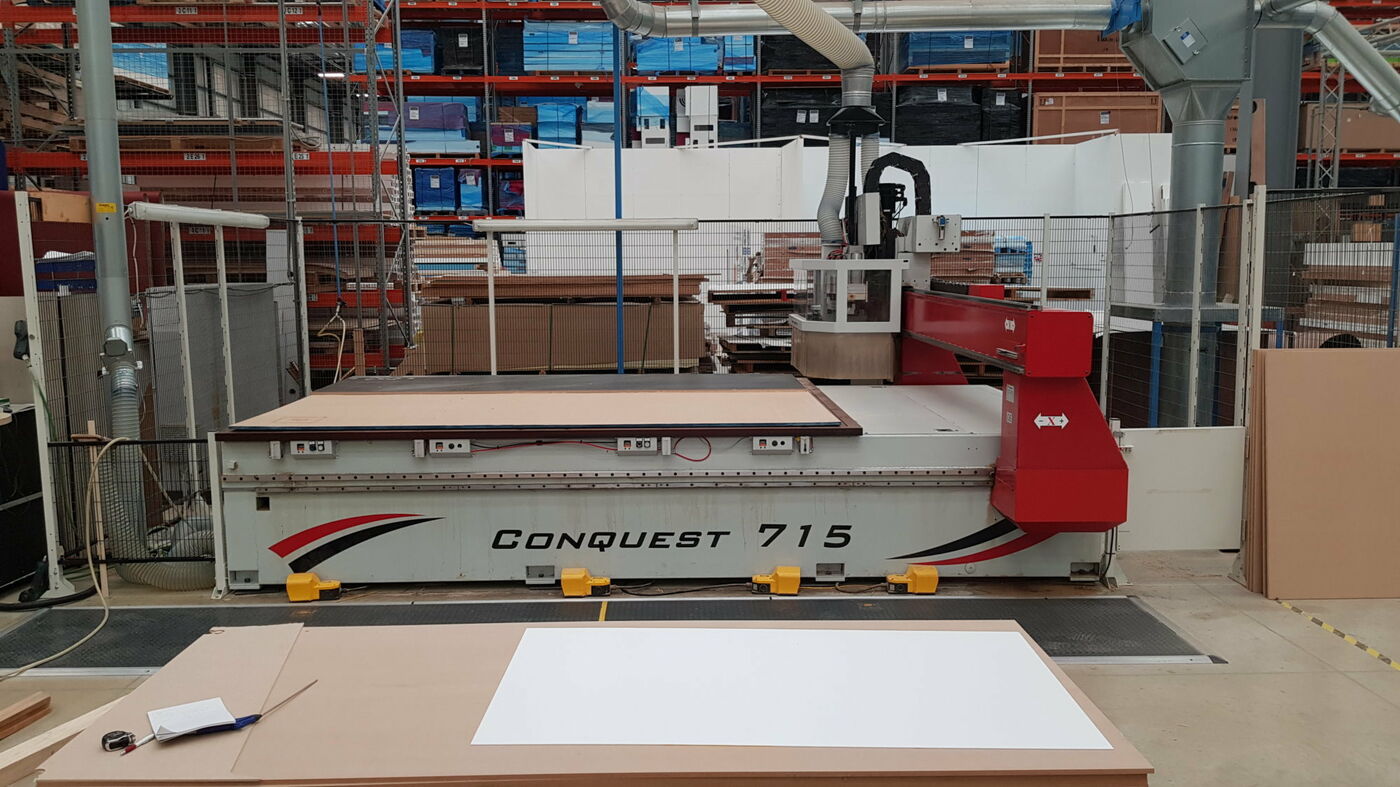

Used Cosmec Conquest 715
Cosmec conquest 715
The machine can be supplied in nesting cell format, which would include automatic loading and automatic unloading. The machine is ideally suited to large production of kitchens and cabinet doors whilst is flexible enough to cope with most other production types.

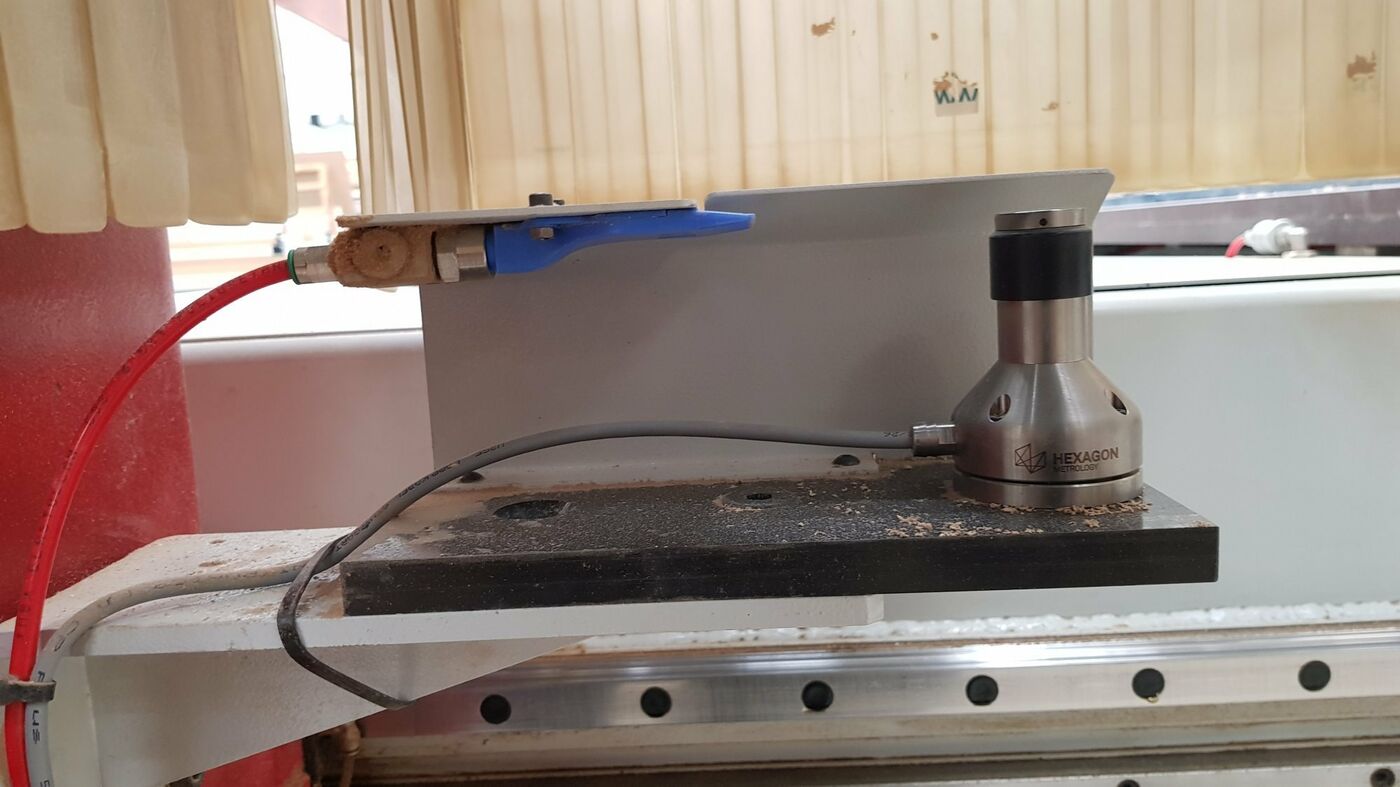

The software included comes complete with the Aspan Nesting option to enable easy nesting of components when required. A tool length pre-setter comes as standard for ease of tool setting.
Used Cosmec Conquest 715 Specification
| Working area | X from 3.210 to 22.210 mm Y 2.210 mm Z 250-500-700-1.000 mm . |
|---|---|
| Vector speed | 85 mt/min . |
| Linear speed | 60 mt/min . |
| Electrospindle max. speed | 24000 rpm . |
| Electrospindle attack | ISO 30-HSK F 63 . |
| Electrospindle power | 12-16-18 KW . |

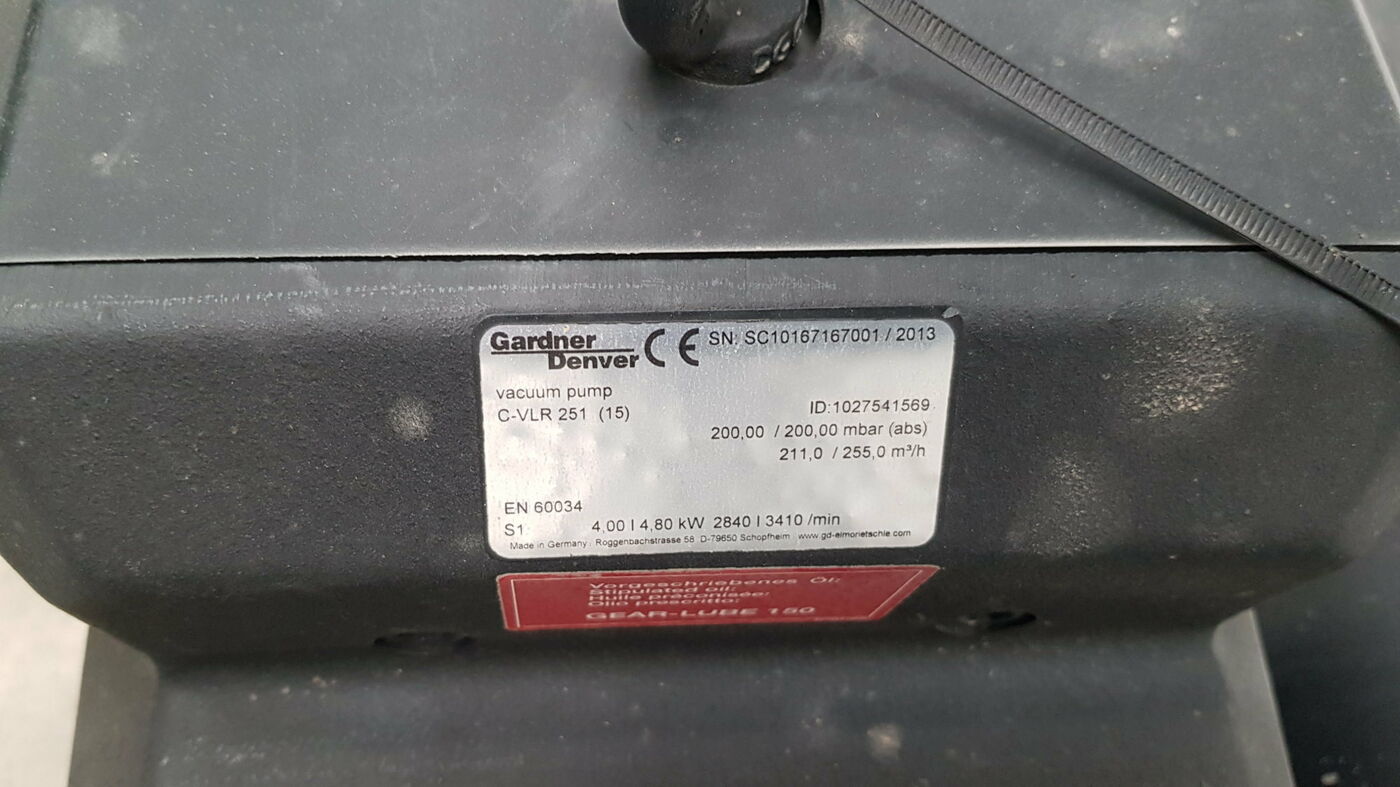

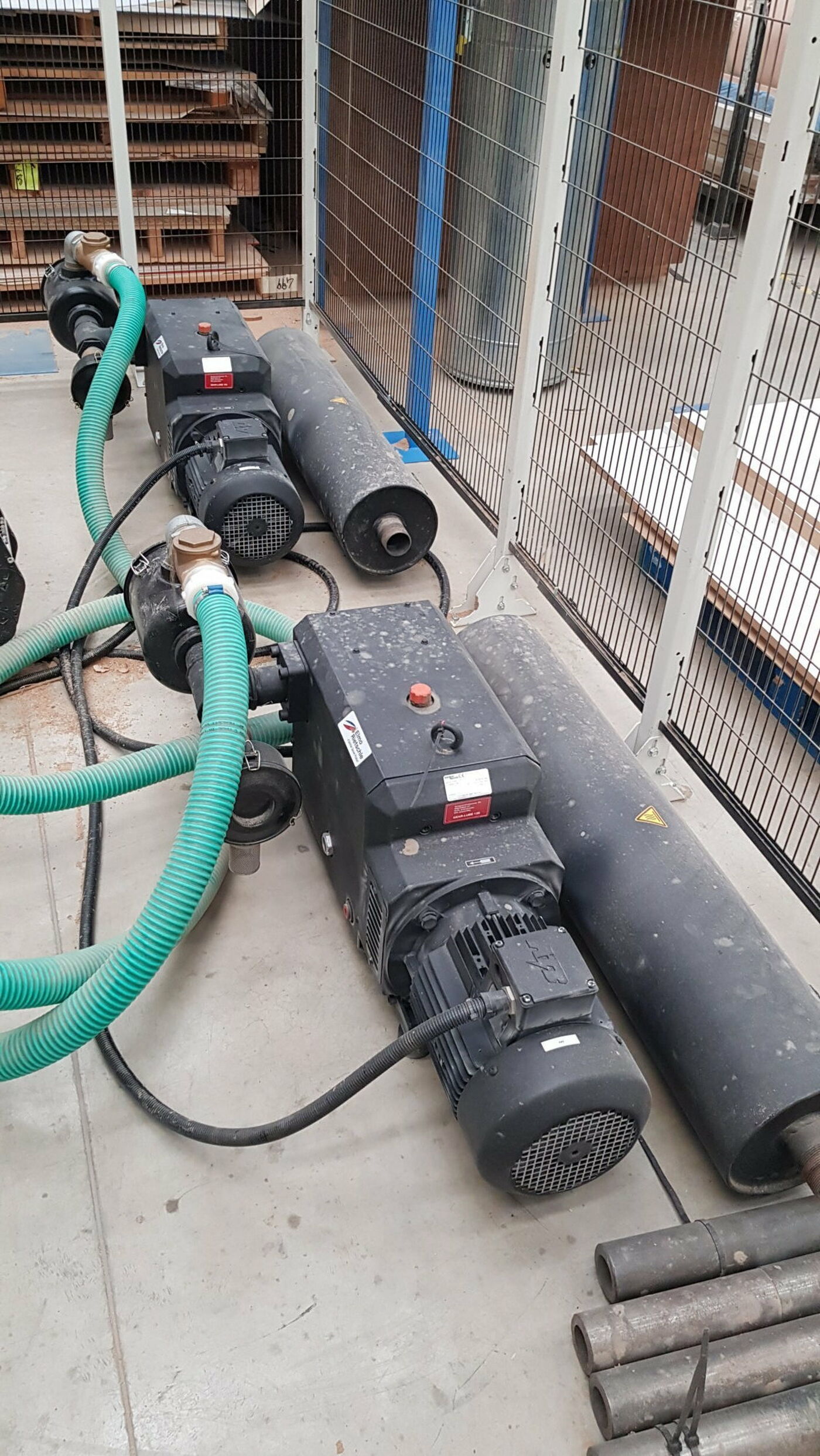

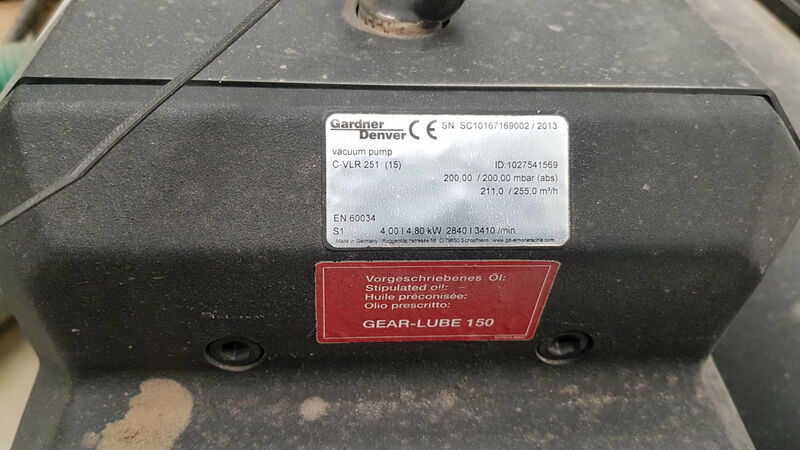

| Vacuum pump capacity | 100-250-500 m3/h . |
| Rotary tool changer | 12 positions . |
| Rack tool changer | 12 positions . |
| Max. number of installable tools | 48 . |

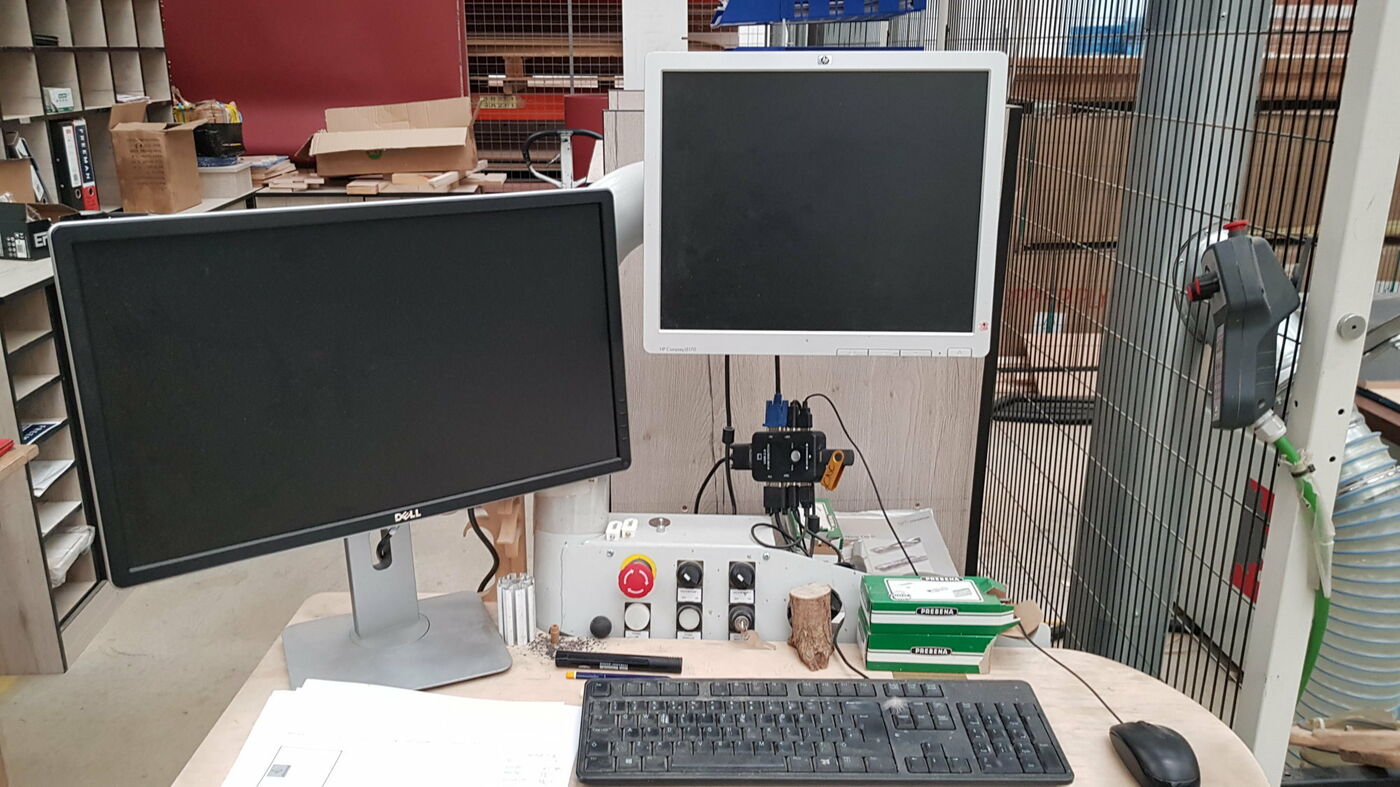

| Numerical controls | OSAI/SIEMENS . |
