Used Felder Profit H350 5-Axis CNC router
Profit H350 16.30:
CNC machining centre with gantry design (without tools) with digital drive (driven from both sides).
The machine chassis of the Profit H350 16.30 is made from thick walled electrically welded shaped tubes. The steel ribbing inside the chassis ensures a high level of stabiliTY
Automatic central lubrication system:
The lubrication is applied as and when required to the X, Y and Z axes runner blocks as well as the ball screws in Y and Z. The lubrication process is automatically carried out after a specified time.
X-axis guiding system:
The gantry moves along the X-axis on a rail with angled, cambered teeth. - This guarantees maximum precision.
The reduction gears ensure maximum processing quality and repeatability. Encapsulated ball screws running along hardened and milled linear guides carry out the positioning.
Y-axis guiding system:
Positioning is carried out using encapsulated ball screws, running along hardened and milled linear guides. The Y axis is positioned using a milled ball screw.
Guiding system Z-axis:
Positioning is carried out using encapsulated ball screws, running along hardened and milled linear guides. The Z axis is positioned using a milled ball screw.
Working field H350 16.30:
Travel distance of the axis:
X= 4000 mm
Y= 1970 mm
Z= 455 mm
Working area:
X= 3000 mm
Y= 1550 mm
Z= 250 mm passage height from the level of the consoles depending on the clamping system, see layout
High performance PC
24" LED colour display screen
Keyboard, mouse and mouse pad- 1 USB Port
Hand held terminal to control the axis speed including emergency stop switch:
Performance specifications of the machine software Woodflash:
6 consoles:
with front and rear rows of fences Hose-free vacuum dual-circuit system with a vacuum pod height of 100 mm. Pneumatic adjustment of the workpiece supports running on hardened and ground round guiding bars. One front and rear, program controlled pneumatic cylinder on each of the supports. 4 positionable lateral stops in the Y direction. 4 loading supports make the loading or removing of larger or heavier workpieces much easier. The max. load capacity of each support is 20 kg - position in accordance with the machine layout.
Vacuum system 90m³/h
1 vacuum pump with a total vacuum capacity of 90 m³/h / 50 Hz
108 m³/h / 60 Hz
12 kW (S6) HSK F63:

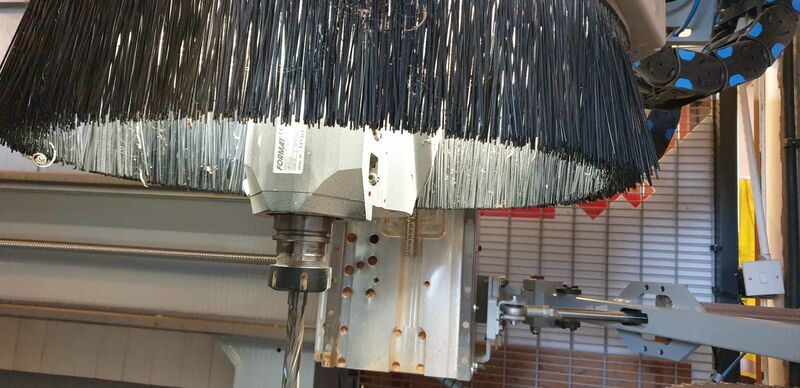

24,000 rpm cardanic 5 axes electrical spindle, ceramic bearings including liquid cooling with a variable height adjustable extraction hood - electromotive control
Power requirement: 12 KW ( S6 )
Full power capacity at approx. 12,000rpm Rotating speed: 1000 - 24000 rpm
Drive: 3-phase high-frequency motor, controlled by inverter controlled rotation: right/left,
2 controlled compressed air connections, interface for units,
Tool weight (rotating): 6kg
max. saw blade diameter Ø 350, Cooling of the spindle: Liquid cooling Variably positionable extraction hood
12 position linear tool changer to the left of the machine chassis including one pick up place for aggregates:
The 12 position linear tool changer ensures quick changeover times and offers sufficient space for milling tools.
One aggregate position
(See layout for configuration options) Max. tooling diameter 250 mm
Max. tooling length 240 mm
Safety system with a light barrier at the front side (a working area with a foot pedal).
Safety devices conforming to CE regulations
- Safety system with light barrier at the front (as standard)
Emergency stop switch
Safety fence on the left hand side of the machine
Secured door
Control sensors for the vacuum and compressed air
Number @453 - 1 Piece
Main spindle 12.0 kW (S6) spindle cooling: liquid-cooled
Number 902 - 1 Piece Machine language English
Number C12 - 1 Piece
USV interruption free power supply
Number C15 - 1 Piece
Closed cable draw in X and Y axis
This ensures that all cables, pipes and hoses contained in the cable cover are protected from damage.
Number C41 - 1 Piece
Safety system with bumpers including pendulum operation instead of a light barrier (!C21 /
!C40 / !C42)
Pendulum operation with two foot pedals.Reduced travel speed
Number C98 - 1 Piece
Optical status indicator of the machine
The 5-colour optical status indicatorof the machine shows the operatorduring the operation at a glancethe respective status:|green: in process|blue: waiting for operator's action|white: neutral|orange: warning|red: emergency
Number C99 - 1 Piece Blue LED strip lights (#C98)
Integrated into the front panel of the chassis.
Number C49 - 1 Piece
Controlled compressed air supply for frame clamps, 6 consoles (#C135) (!C21)
All usable compressed air frame clamps situated in the working area can be simultaneously opened and closed using the foot pedal. The vacuum required to keep the frame clamps in place remains. 3 compressed air supply connections per console.
Number C51 - 1 Piece
Activation of compressed air and vacuum for 6 consoles (#C46 / #C49 / #C135
This enables the separate manual movement of the vacuum pods/frame clamps on individual consoles, or the removal of offcuts, whilst the workpiece remains held or clamped in position.
Number C70 - 1 PiecE
2 continuous lineal fences in Y direction (!C21)
Mounted to the fence cylinders on the left and right edge of the working field
Number C189 - 1 Piece
Without drilling head, with electro-pneumatic and mechanical preparations for drilling head (!C190 / !C191) The drilling head can also be retrofitted with relatively little effort at the customers.
Number C91 - 1 Piece Additional locking of the C/A-axis
Includes the mechanical clamping of the C and A axis which reduces the strain on the motor and increases the usable service life.
Number C19 - 1 Piece
Safety fence on the right hand side of the machine
Number C88 - 1 Piece
Automatic tool length measurement system and 10 position linear tool changer on the left hand side of the machine chassis including pick up place for aggregates (!C86 / !C87)
The 10 position linear tool changer ensures quick changeover times and offers sufficient space for milling tools as well as an automatic tooling length measuring system.Automatic transferring of the length into the database.One aggregate position(See layout for configuration options)Max. tooling diameter 250 mmMax. tooling length 240 mm
Number C197 - 1 Piece
Pick up place for saw blade travelling in the X direction (!C82)
Tool position for a saw blade, mounted to the gantry.Maximum saw blade diameter is 350 mm. This ensures that no other tool positions need to be blocked in the tool changers, because of the large diameter of the blade.
Number C196 - 1 Piece
18 position rotary tool changer travelling in the X direction (!C84/!C85/!C195/!C196)
The rotation of the tool changer gives the machine access to up to 18 tooling positions or aggregates.The tool changer is mounted to the gantry.(See layout for configuration options)Maximum tool diameter 250 mmMaximum tool length 280 mm
Number C105 - 1 Piece
Real time video monitoring of the main spindle on an external screen whilst processing
Real time video control of theelectrospindle on a separate screen duringthe work processing. SDI cable andconverter for HDMI connection are included.The monitor to display the images it notincluded in the delivery. Electricalconnection of the HDMI converster must beorganises by the customer. From Woodflash4.2
Number C29 - 1 Piece
Mobile control terminal instead of a fixed control terminal (!C21 / !C28) (#C42)
Equipped with:- High performance PC- 24" LED colour display screen- Keyboard, mouse and mouse pad- 1 USB Port
Number C100 - 8 Piece Vacuum Pod 140 x 115 x 100 mm
Number C101 - 4 Piece
Vacuum Pod 125 x 75 x 100 mm in X
Hose-free dual circuit vacuum pod system. The replacable rubber covers guarantee an optimal grip of many different materials and can be used in a wide variety of machine operations.
Saw blade tool holder for H350
HSK 63-F D=110 mm, AL=65 mm, GL=97 mm, 8 NLA - Ø6,0 / TK90
including locking screws
1 ST
300-04-0150
Cutting saw blade (solid wood) for
saw blade holder 300-04-0767 350 x 4.4/3.2 x 30 Z= 48 WZ 8 NLA - Ø6.6 / TK90
4 ST
301-132
Horizontal frame clamps for Schmalz consoles with a clamping range from 0mm - 140mm. Height of the clamping device to the support surface 100mm. It can be used in the X and in the Y direction.
(Settings for the clamping range and the tilt are carried out manually).
Including 2 reference tabs and 2 reference plates
