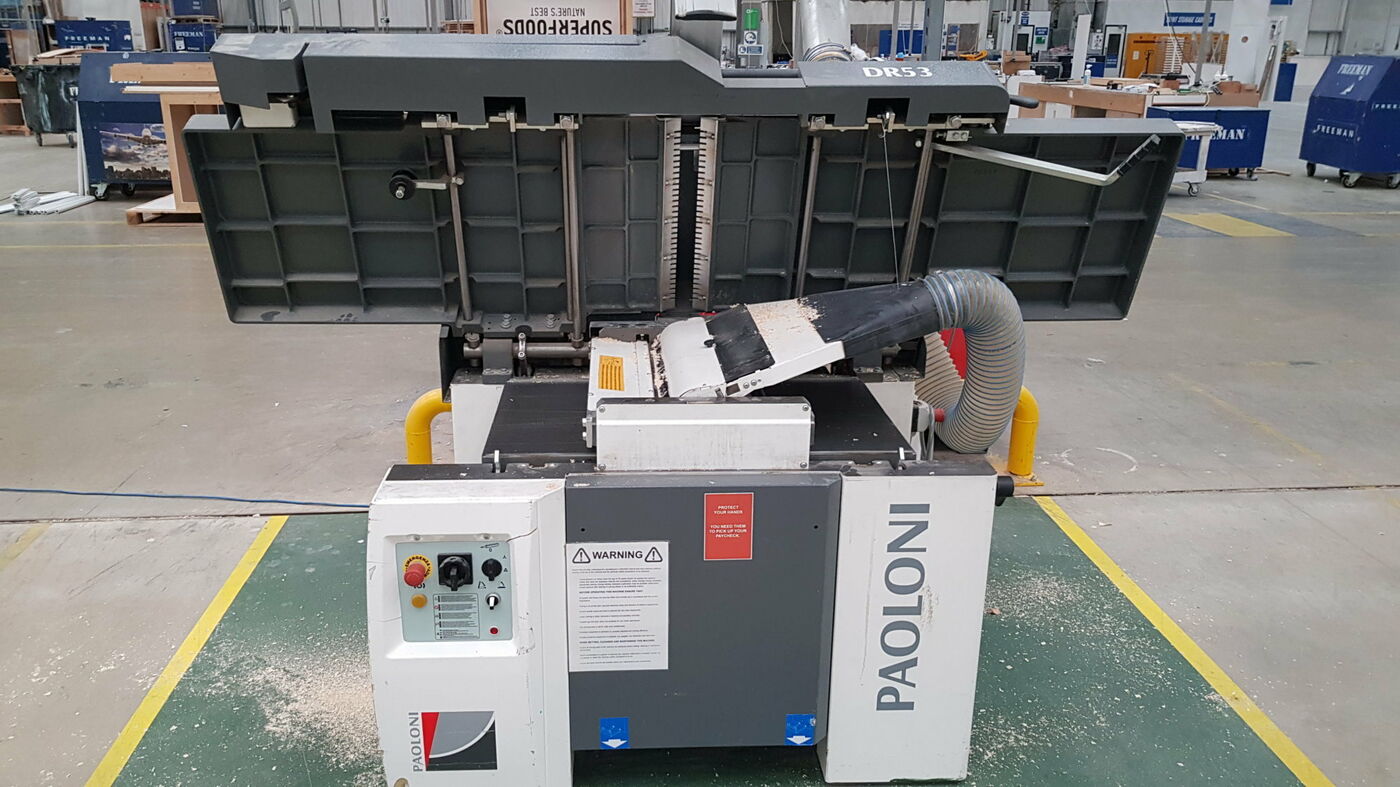

Used Poaloni DR53

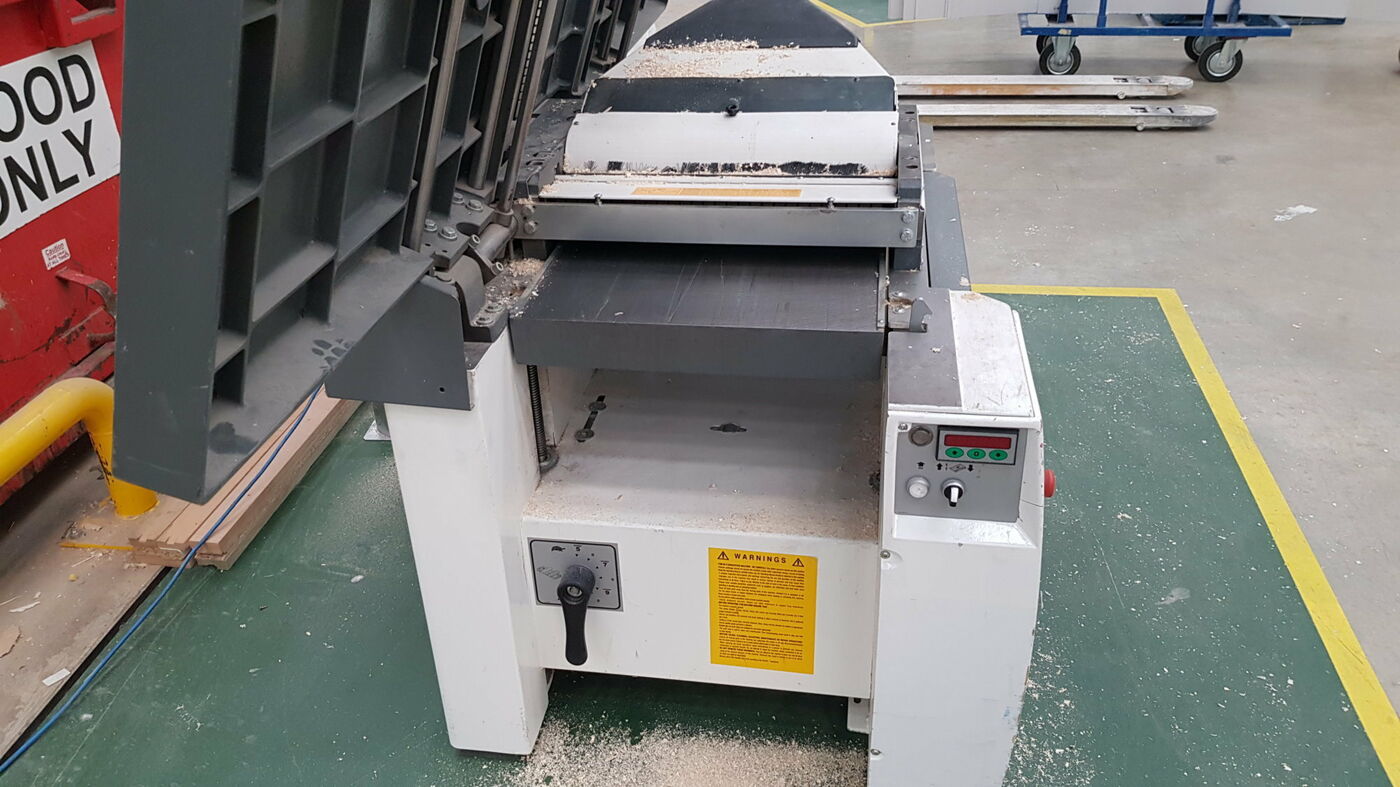

The DR53 is a very robust combination machine with a working width of 530mm and an overall surfacing table length of over 2300mm making it ideal for straightening timber. The thicknesser has a capacity from 5mm up to 250mm.

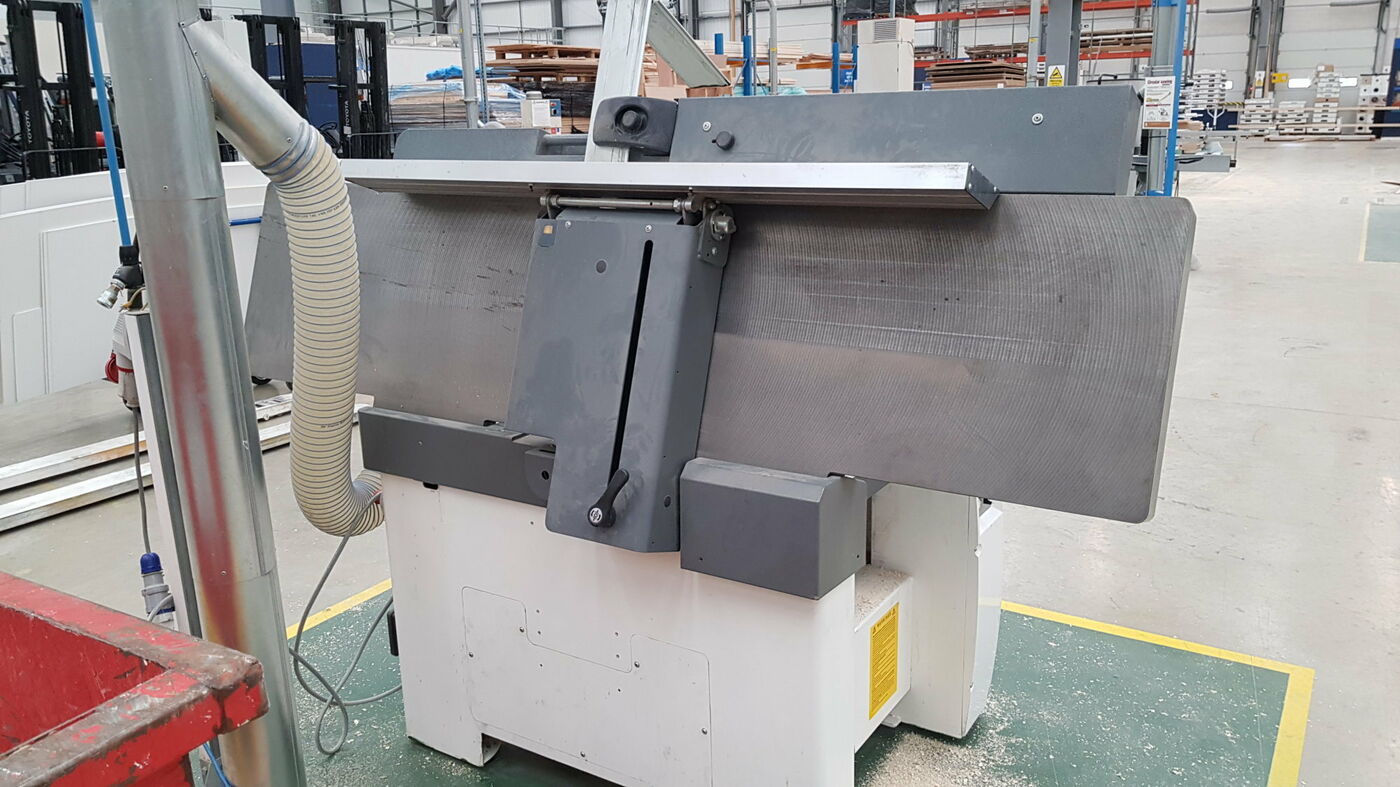

The bridge guard is also sprung to ensure it is always correctly positioned. The aluminium fence is inclinable to 45º and has a double tilting mechanism to maintain accuracy over its full length when inclined. The angle being indicated on a clearly visible scale. Movement of the fence across the cutter block is on a central round bar which gives a smooth movement over its entire scope of travel.
Used Poaloni DR53 Specification
| Working width | 530 mm . |
|---|---|
| Total table length | 2300 mm . |
| Infeed table length | 1120 . |
| Cutter block | 120 mm Dia with 4 knives . |
| Cutter block speed | 4800 rpm . |
| Max depth of cut | 8 mm planer 7 mm thicknesser . |
| Thicknessing capacity | 515 mm x 250 mm . |
| Feed speeds | 7 / 11 / 15 / 19 m / min . |
| Main motor power | 5.5hp . |
| Extraction connection | 120 mm . |
| Extraction requirement | 600 Cfm / 1000 M³h . |
| Electrical connection | 3ph / 415v / 50Hz . |
| Net weight | 560 kg . |
